Product name : TNC Female RF Coaxial Connector – Compatible with RG316/U Cable
Type : Straight
Gender : Female
Material : Brass
Plating : Nickle
Insulating medium : PTFE
Durability : 500 times
Product Overview
TNC series connectors comply with GJB681A, MIL-C-39012, and IEC 60169-17 standards. These connectors are designed as small to medium-power RF interfaces featuring a threaded coupling mechanism, making them especially well-suited for mobile communication equipment operating under vibration or harsh environmental conditions.
Applications
Communication systems
Antennas
Medium-power RF transmission
Outdoor and mobile equipment
Product Features
Compatible with RG316/U RF coaxial cable
Secure threaded connection for high vibration resistance
Excellent electrical performance and signal integrity
Strong environmental durability for outdoor use
Product Specifications
Important Technical Parameters
Electrical property
| Temperature range | -55~+165℃ | ||
Characteristic impedance
| 50Ω | Frequency range | DC-11GHz | |
Dielectric withstanding voltage
| 1500V | VSWR | ≤1.3 | |
Insulation resistance
| ≥5000MΩ | Insertion loss | ≤0.06√F(GHz)dB | |
Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
Outer conductor | ≤0.2mΩ | Durability | 500times |
Materials and Surface Treatment
Center conductor
| Beryllium bronze, gold plating | Insulating medium | PTFE |
Outer conductor
| Brass, nickel plating | / | / |
Product Image Gallery
![]() |

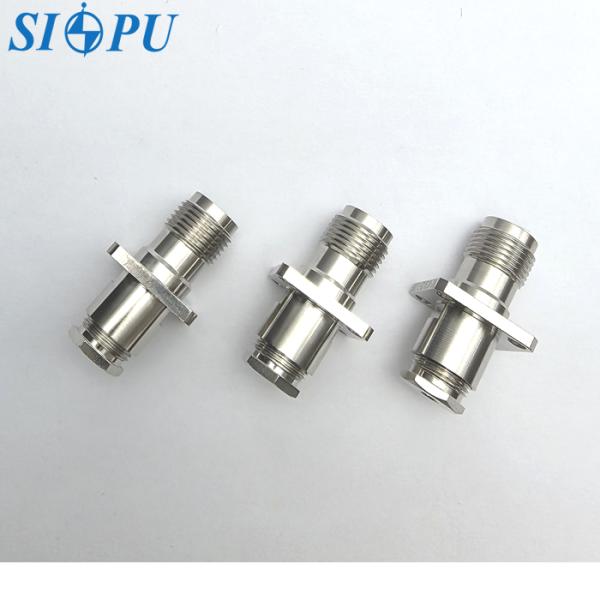

TNC Female RF Coaxial Connector – Compatible with RG316/U Cable Images |
